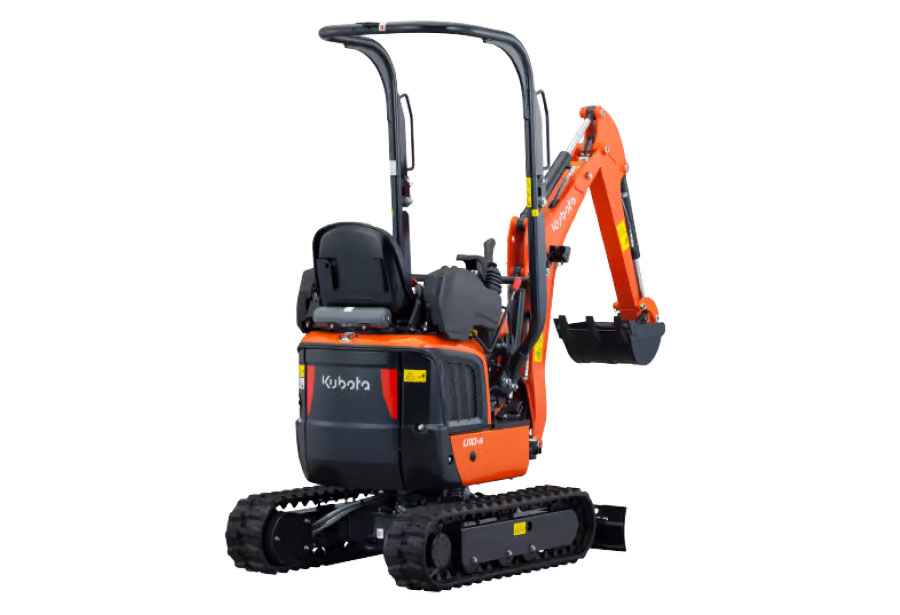

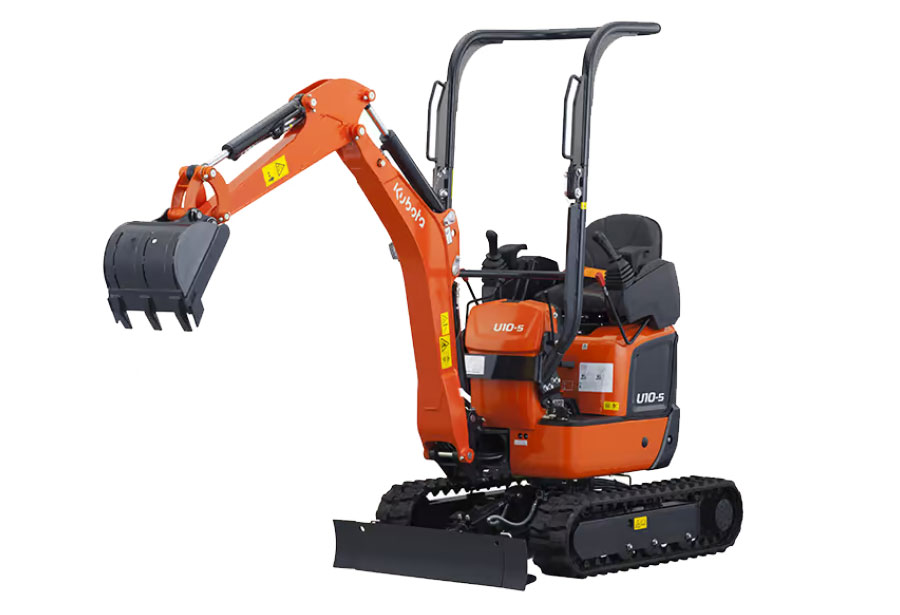

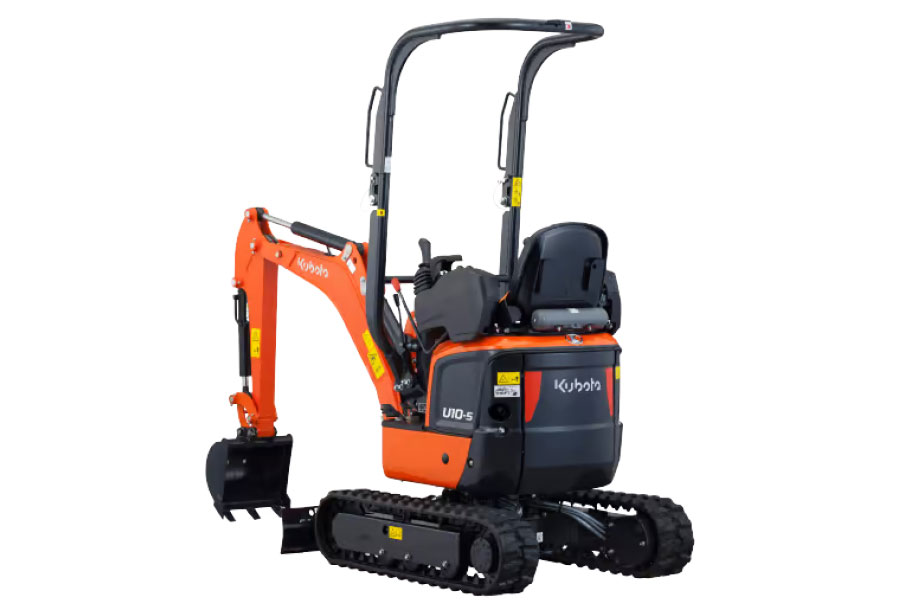

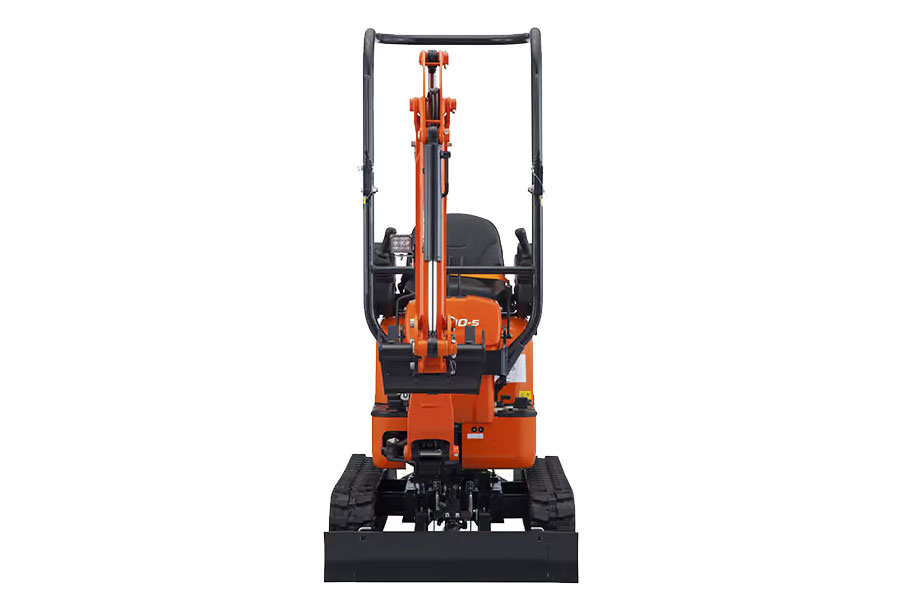

1.1 Tonne Kubota Micro Digger

Description

Engine

• The U10-5 is powered by Kubota’s impressive D722-E4-BH-3EU 3 PS E-TVCS engine. The unique Kubota Three Vortex Combustion System reduces exhaust emission, noise and vibration.
• The Stage V compliant engine meets all current engine emission regulations.
• Parts that require routine maintenance and inspection such as the air cleaner, water separator, fuel filter, alternator and starter motor are easy to access. Simply lift the operator’s seat.

Hydraulics

• Hydraulic servo controls for smoother operation and improved feel, resulting in an increased digging productivity of around 8%
• For increased protection, service port pipes are inside the boom.
• Service ports are conveniently located at the end of the boom.
• The boom cylinder is located on top of the boom for added protection.
• Auxiliary third line return

Versatility

• With easy, single-lever operation, the U10-5’s hydraulically adjustable track gauge reduces in seconds—down to 750 mm— to enable navigation in narrow spaces.
• You can widen the track gauge to 990 mm – also with a single lever operation – to provide a 7% increase in stability, even while operating with hydraulic breakers.
• With the simple removal of one pin, the quick-fold dozer blade adjusts in size instantly.
• Designed for safe, productive operation in restricted spaces or roadside locations featuring Kubota’s zero-tail swing.

Performance

• Improved digging arm circuit to increase the crowd speed, eliminate cavitation, and significantly improve control for fine grading.
• Digging depth up to 1.8m with a maximum reach of 3.3m
• Use the two-speed travel pedal to switch between high and low speeds.
• To make sure you can get to the job efficiently, three-point lifting enables a crane to lift the U10-5 for transport, easily and safely.

Comfort

• Walk through access to the ergonomically designed, large operator’s area.
• Side lever control, increased legroom and visibility offers an optimal comfort to the operator.
• The travel pedal lets you easily switch between high and low speed
• Toolbox and instruction manuals stored in easy-to-reach locations.

Safety

• For additional protection and versatility, a foldable rollover protective structure (ROPS) comes as standard allowing you to easily transport on lorries, travel under doorways and work indoors.
• Enhanced operational safety with travel unload lock plus boom swing, AUX unload and dozer lock as standard
• LED boom light as standard for safer, extended working
• High visibility orange seat belt with seat belt alarm
• Green beacon ready
• Kubota’s industry-leading anti-theft system is standard. Only programmed keys will enable the engine to start up. Attempting to start with an un-programmed key will activate the alarm.
