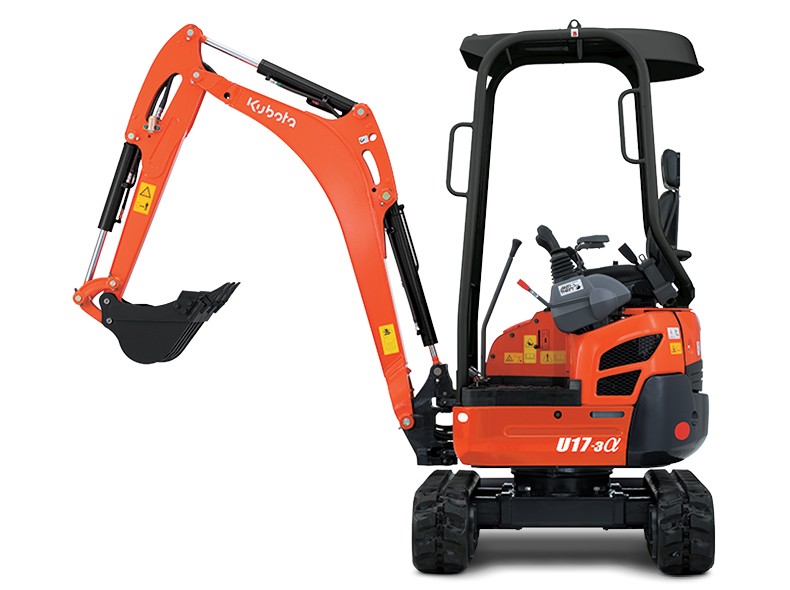

Orange Kubota framed excavator with black frame

1.7 Tonne Kubota Mini Digger

POA

  • The Kubota U17-3A excavator provides excellent digging depth and reach
  • Short-pitched rubber crawlers to minimise vibration and improve operator comfort
  • Unique E-TVCS (Three Vortex Combustion System) for high energy output, low vibration, low fuel consumption and minimised exhaust emissions
Pickup / Delivery
Return / Collection
Quantity

First name

Last name

Email

Phone

Message

SKU: 081020 Categories: ,

Description

Kubota’s U17-3α ensures versatility and performance. Furthermore the High-Spec model delivers easier and precise operation by utilising AUX proportional flow control via a thumb switch on the joystick.

The system

Introducing Kubota’s simple and secure anti-theft system. Our one-key-system has an IC chip, which only starts the engine when the system recognises the appropriate key. Standard equipment includes one Red programming key, plus two Black operational keys. And up to four Black keys can be programmed. What’s more, you get peace of mind knowing your construction equipment couldn’t be in safer hands.

Safety / security

Only “programmed keys” will enable the engine to start. Even identically shaped keys can’t start the engine unless they are programmed. In fact, attempting to start the engine with an un-programmed key will activate the system’s alarm. This alarm will continue even after the un-programmed key is removed. It will only stop once a programmed key is inserted into the ignition and switched on to start the engine.

Easy operation

No special procedures needed. No PIN numbers needed. Just turn the key. Plus, our simple “one-key-security system” allows access to the cabin door and engine bonnet as well as the fuel tank.

Easy programming

One Red programming key and two pre-programmed Black operational keys come standard. If a Black key is misplaced, or if additional Black keys are needed (a maximum of two can be added), key programming is easy. Simply insert the Red key, followed by the Black keys.

Specification

Length

3.545m
Height

2.34m
Width

0.99m
Model

U17-3α
Fuel

Diesel
Operating Weight

1650kg
Engine

Kubota D902-E4 Water-cooled, diesel engine E-TVCS
Fuel Tank Capacity

19l
Dump Height

2.34m
Transport Weight

1575kg

The best insurance against accidents is to abide by the safety regulations. Read and understand this section carefully, before operating the excavator. Every user, however experienced, should carefully read and understand this section and those of the attachments and accessories before taking the excavator into operation. The owner is obliged to inform the operators of these instruction in detail.

Download manual
Hard Hat RequiredHard Hat Required
No Goggles RequiredNo Goggles Required
No Ear Defenders RequiredNo Ear Defenders Required
No Vibration Risk With ProductNo Vibration Risk With Product
No Safety Gloves RequiredNo Safety Gloves Required
No Mask RequiredNo Mask Required
Safety Boots RequiredSafety Boots Required
View Safety Information

Key Features

01

Working Range

Kubota has designed the U17-3α to provide excellent digging depth and reach. The extended dozer length optimises the distance between the dozer and the bucket, making it fast and efficient to collect soil close to the machine. With its wide working range, the zero-tail swing U17-3α can complete a variety of jobs productively
02

Zero-tail Swing

Kubota’s zero-tail swing makes the U17-3α an advanced mini excavator. The 360° swivel, excellent stability and smooth control, combined with unmatched power and efficiency, mean there are no limits to what you can accomplish — even in heavy traffic areas and inside buildings
03

Protected Front & Auxiliary Hoses

Front cylinder hoses are routed through the boom for increased protection, extended service life and greater operator visibility. Also, the auxiliary hoses extend only to the top of the arm to protect them from potential damage during narrow-width bucket use
04

Adjustable Track Gauge

For an increase in stability, the U17-3α’s tracks can be expanded to a maximum 1,240 mm. When retracted to 990 mm, you can pass through narrow doorways and tight work areas. And on both ends of the dozer, dozer blade extensions are standard
05

Kubota Engine

Kubota’s unique E-TVCS (Three Vortex Combustion System) enables high-energy output, low vibration and low fuel consumption, while minimising exhaust emissions
06

Outstanding Travel Performance

Kubota’s U17-3α delivers powerful performance and the use of shortpitched rubber crawlers helps minimise vibration during travel for improved operator comfort
07

Anti-theft system

The ultimate in security that’s as easy as turning a key. It’s the industry’s first standard-equipped anti-theft system, and another original only from Kubota
08

2-Piece Hose Design

The two-piece hose configuration on both dozer and boom cylinders reduce hose replacement time

Made-to-measure solutions

Need advice?

If you don’t find what you’re looking for here, please get in touch.

Phone icon 0800 334 5365 Send us a message
