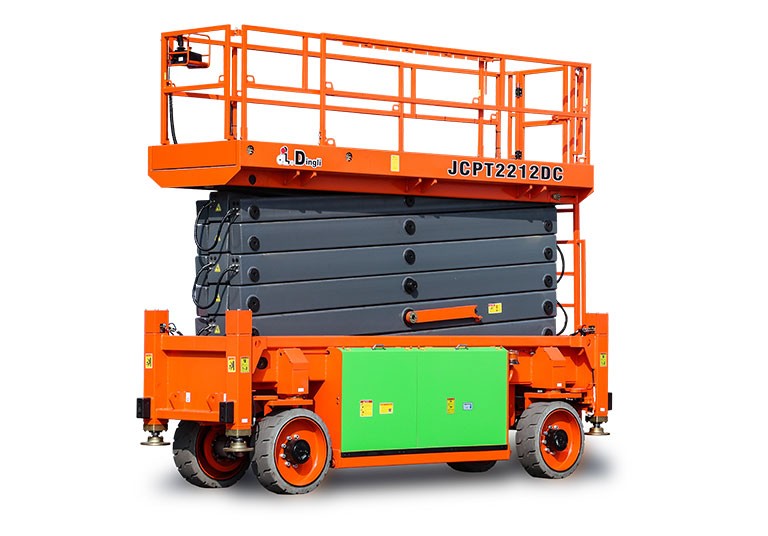

JCPT2212DC 22m Large Scissor Lift

POA

Our 22m electric scissor lift hire services include a number of options for working in narrow spaces as well as indoor and outdoor settings. Amongst our most popular models, we stock the Dingli JCPT 2212DC narrow electric scissor lift.

Pickup / Delivery

Return / Collection

Quantity

SKU: 097180 Categories: Powered Access Hire, Scissor Lifts

Description

The 12350kg JCPT 2212DC provides a working height of 22.0m and a safe working load of 600kg. This reliable 22m electric scissor lift, with its 1.25m reduced width, is designed to support safe and effective work at height across a variety of applications.

The Dingli 22m electric scissor lift has a platform size of 4.30m x 1.19m, with a 1.80m deck extension. This machine also includes automatic levelling outriggers and rough terrain non-marking tyres, allowing it to operate effectively on uneven terrain.

The highly versatile JCPT 2212DC is ideal for indoor and outdoor work. Being a zero-emission machine, it is especially suited to work in Clean Air Zones as well as in low emission environments such as inside airports, warehouses and tunnels.

Specification

Working Height	22m/72ft 2in
Platform Height	20m/65ft 7in
Machine Length	4.72m/15ft 6in
Machine Width	1.25m/4ft 1in
Gradability	25%
Safe Working Load	600kg
Weight	12350kg/27227lb
Raised Platform Height	3.82m/12ft 6in
Lowered Platform Height	2.99m/9ft 10in
Platform Width (Inside Dimension)	14ft 1in×3ft 11in
Platform Length (Inside Dimension)	4.30m×1.19m
Wheelbase	3.18m/10ft 5in
Ground Clearance (Stowed)	0.20m/0.02m
Ground Clearance (Raised)	8in/1in
Turning Radius (Inside)	1.60m/2.30m
Turning Radius (Outside)	5ft 3in/7ft 7in
Drive Speed (Stowed)	3.5km/h / 2.17mph
Drive Speed (Raised)	0.5km/h / 0.31mph
Motor Power	4×32V/3.3kW
Battery Voltage	48V
Battery Capacity	630Ah
