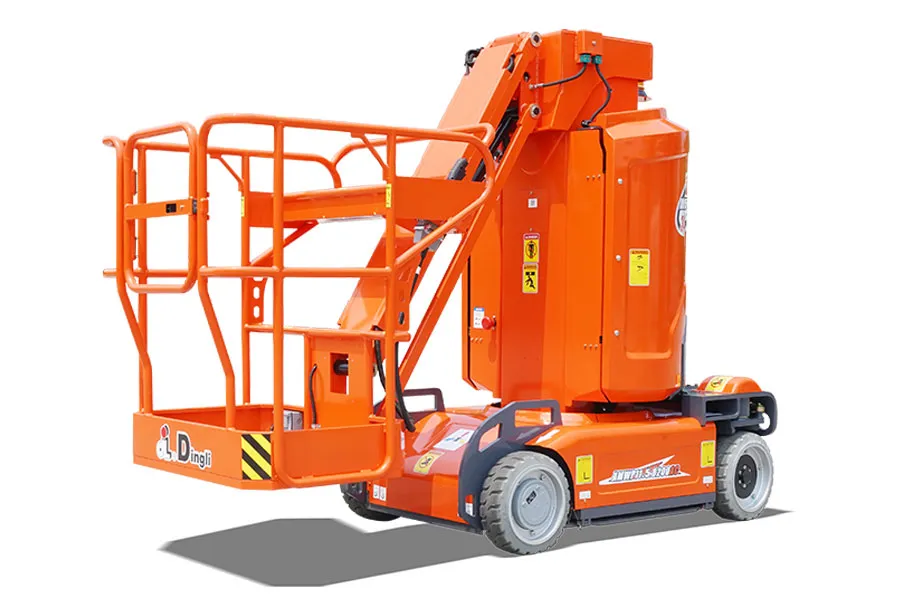

Vertical Mast Access Platform – 11.2m Working Height

POA

Electric driven, with light structure and flexible operation.
Equipped with maintenance-free battery
Driveable at full height, specialised for narrow spaces in warehouses, supermarkets, hotels and airports.

SKU: 097050 Categories: Boom Lifts, Powered Access Hire

Description

Equipped with fully sealed AC system, which is maintenance-free, more waterproof, more efficient and safer, combined with maintenance-free batteries to realise the whole machine maintenance-free.
With 3 meters horizontal extension, large range of horizontal outreach.
Equipped with the unique pothole protection system for higher safety.
Maximum working height is 1.20m higher than equivalent products in the industry.
Equipped with special fork loading holes for convenient transportation.
Platform basket width increased, with upgrade of full-height gate to realise access without bending, more convenient.

Max. Working Height	11.20m / 36ft 9in
Max. Platform Height	9.20m / 30ft 2in
Max. Horizontal Reach	/
Max. Up And Over Clearance	/
Overall Length	2.62m / 8ft 7in
Overall Width	1.00m / 3ft 3in
Overall Height	1.99m / 6ft 6in
Platform Size(Length×Width)	0.69m×0.93m / 2ft 3in×3ft 1in
Platform Extension Size	/
Ground Clearance(Stowed)	0.07m / 3in
Ground Clearance(Raised)	0.02m / 1in
Wheelbase	1.22m / 4ft
Turning Radius(Inside/Outside)	0m/1.8m / 0in/5ft 11in
Tyres	φ381×127mm
Safe Working Load	200kg / 441lb
S.W.L On Extension	/
Max. Occupants(Indoor/Outdoor)	2/1
Gradeability	0.25
Max. Working Slope(X/Y)	2.5/2.5
Turret Rotation	345°
Jib Movement	+70°/-60°
Travel Speed(Stowed)	≯5.0km/h / 3.11mph
Travel Speed(Raised)	≯0.5km/h / 0.31mph
Up/Down Speed	42/38sec
Overall Weight	2970kg / 6548lb
Lead-Acid Maintenance-Free Battery	24V/200Ah
Lithium Battery	24V/180Ah
Charger	24VDC/30A
Driving Motor	2×15VAC/0.87kW
Lifting Motor	15VAC/3kW
